Electroweld Hand Operated Brazing Machine 20KVA (H-20BR)

Regular price $1,170.00

Prices include Shipping to destination port (Via CIF-named port of destination). FOB or DAP shipping quotes can be requested.

Listing Template

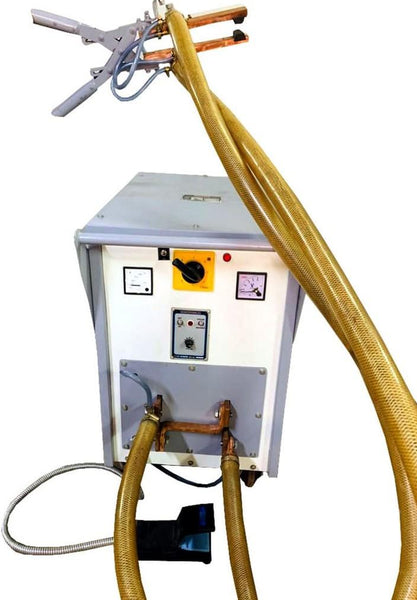

Electroweld Hand Operated Brazing Machine 20KVA (H-20BR)

Video 1 - Electroweld Hand Operated Brazing Machine

Video 2 - Electroweld Resistance Butt Brazing Machine Pneumatically Air Operated

Video 3 - Electroweld Resistance Brazing Machine for Power Transformer Copper Leads

Video 4 - Electroweld Resistance Brazing Machine Pneumatically Air Operated

Product Details

Electroweld industries is a leading manufacturer of resistance welding equipment, serving the industry for over 45 years. Our welding machines are designed to provide a production solution at an affordable price while ensuring reliability and low cost maintenance.

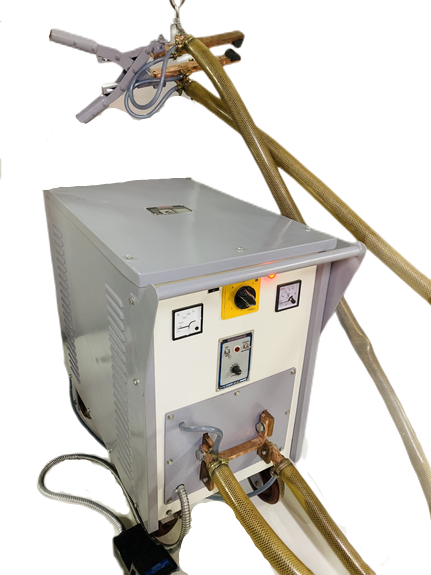

Electroweld Hand Operated Brazing Machine 20KVA (H-20BR)

Used for brazing 10x15x2mm to 20x30x4mm- Silver+Copper, Copper+Copper, Copper+Steel

Applications of Resistance Brazing

Brazing is the process of joining one metal to another metal using a low temperature interface metal, called a brazing alloy, without melting the two primary metals. Brazing permits the joining of metals with very disparate melting temperatures, thermal loads, and crystalline structures. Common brazing examples include relay contacts, machine tool bits, and radiator assemblies. Brazing alloys typically melt at 400ºC or higher. Note:The parts to be joined do not melt, instead the solder/braze materials melt to effect a metallurgical bond. A variety of methods can be used at the joint interface to melt the solder/braze materials including resistance, infra-red, laser, and thermal conduction. Resistance Brazing Resistance brazing is ideal for joining small electronic or electro-mechanical metal components that are thermally conductive, electrically conductive, thermally imbalanced, and cannot tolerate heat soaking for extended periods at the brazing temperature. Resistance brazing involves passing a controlled electric current through one or more of the primary metals and possibly the brazing alloy.

Resistance Brazing Process:

The brazing current must pass through at least one of the primary metals for the resistance brazing process to work. In some cases, the heat generated from one primary metal is sufficient to displace any insulation on the second primary metal, thus allowing the brazing alloy to wet to the both primary metals. The workpieces are heated locally, and the filler metal that is preplaced between the workpieces is melted by the heat generated from resistance to the flow of electric current through the electrodes and the work. Resistance Welding Technology is employed to heat/anneal the job or braze two parts or joints where lesser heat is required at a longer time period. With resistance brazing, a brazing solder (possibly including the soldering flux) is used to ensure that the electrical resistance is the greatest at the solder point. This makes it possible to weld smaller components to metal sheets, which have a high degree of thermal conductivity. Firmly bonded joints are created without any noteworthy structural transformation. The resistance brazing is targeted so that neighboring areas to the solder point are only subjected to very slight thermal influence and any damage to materials is ruled out as far as possible. The controller is used for controlling parameter like Time, Heat, Pressure and feed settings. These are generally custom-built equipment with specially designed transformers for higher duty cycles. Electro-Brazing, Cross Wire Welding, Sheet Metal- 2-ply or Multi-ply, Mark-less Welding, Resistance Heating and Soldering. Confirmation of weldability of other materials can be provided on request.

Users Include: General engineering work-shops, makers of furniture, electrical instruments, containers, barrels and drums, telephone, radio communication devices, clocks, kitchenware, textile machinery and spares, automobiles, bicycles, motor-cycles, scooters, auto-ancillaries, toys, air-conditioners, refrigerators, transformers, motor, switch gear, etc.

Construction : Heavily fabricated with streamlined appearance, suitably stiffened at points of stress. The transformer is mounted directly on to the body.

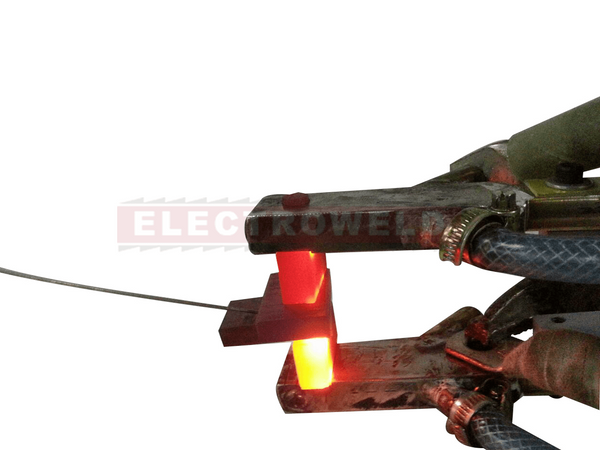

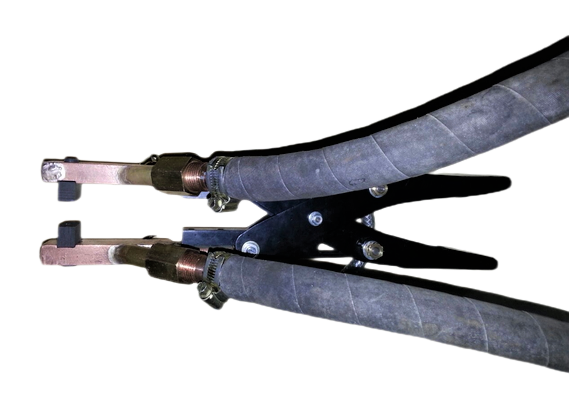

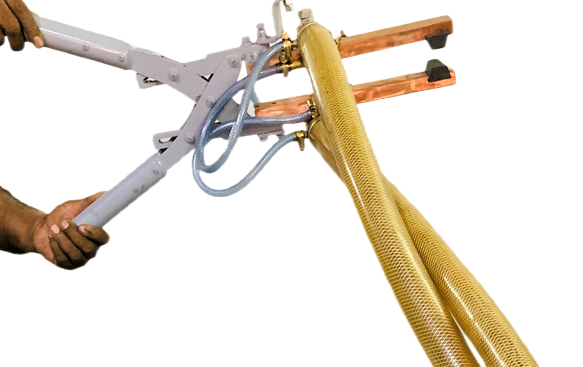

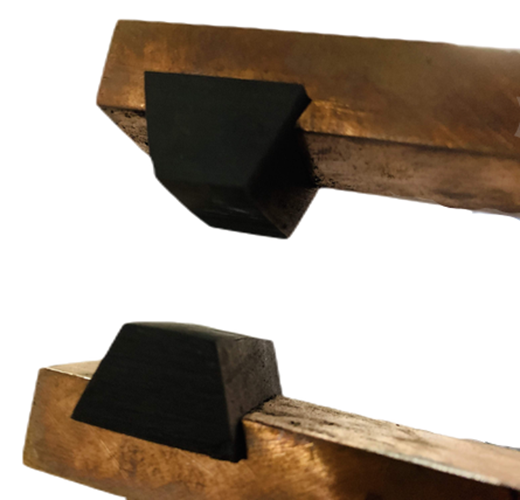

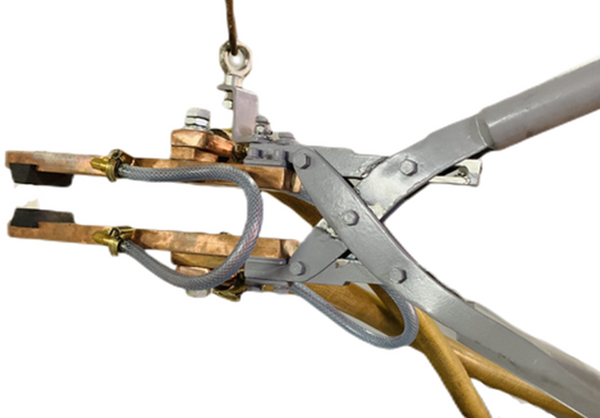

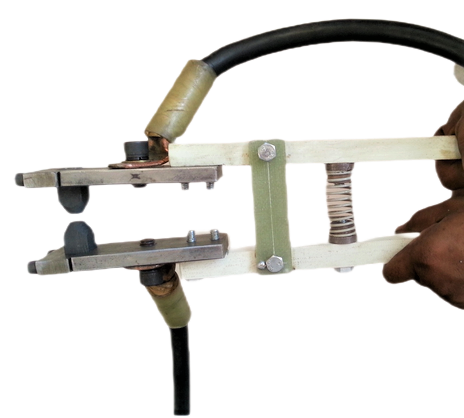

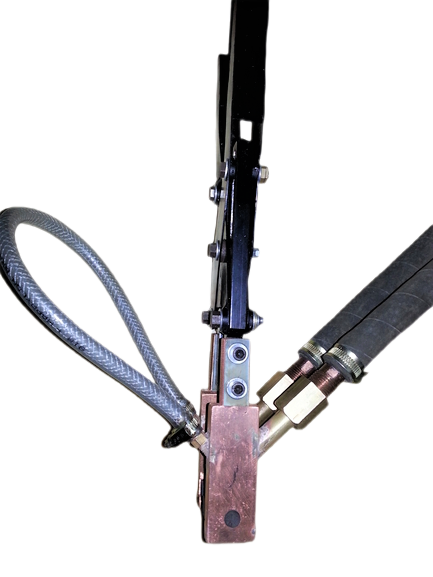

Electrodes:Handheld brazing electrode holder with Graphite Electrodes supplied as standard with the machine, Other types available on request. The electrodes are water cooled

Cooling System: Electrodes, Electrode holders secondary water cooled, water required to be free from residue forming impurities and at a temperature of less than 30* C or 85* F. If water temperature is higher, increased water flow is required.

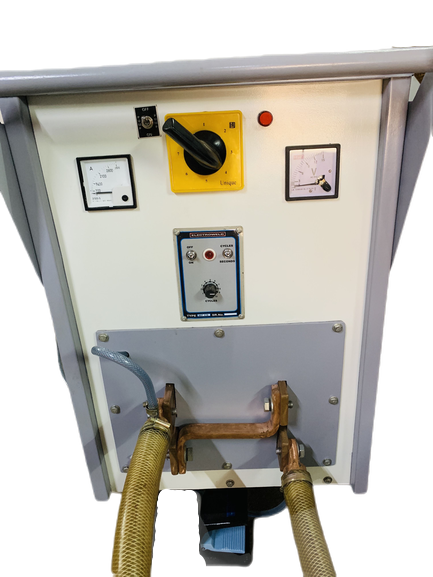

Current Control: By means of 3/6 tap change links between 50% and 100% also fine setting through controller

Brazing Initiation: By means of Foot Switch which initiates the brazing process.

Electroweld Hand Operated Brazing Machine 20KVA (H-20BR)

Used for brazing 10x15x2mm to 20x30x4mm- Silver+Copper, Copper+Copper, Copper+Steel

Note: For Bronze and Brass the Weldable thickness reduces and specs are available in table below

* Power Requirement is 220V AC 50/60Hz or 415V AC 50/60Hz(Price includes customization as per requirement before shipping)

**Brazing Machines upto 30KVA can operate on either 2 Lines/Phases 220V (+10%/-10%) or 400V (+10%/-10%) 50/60Hz

***Brazing Machines greater than 30KVA can only operate on 2 Lines/Phases 400V (+10%/-10%) 50/60Hz

***Standard Electroweld Micro Processor Controller

***INCLUDED Standard Coolant Re-circulator Water Pump which is required for proper operation. Specs - 220V/415V 1/3 Ph 220V/440V

****Additional set of spares and consumables can be quoted to be added to the shipment as required

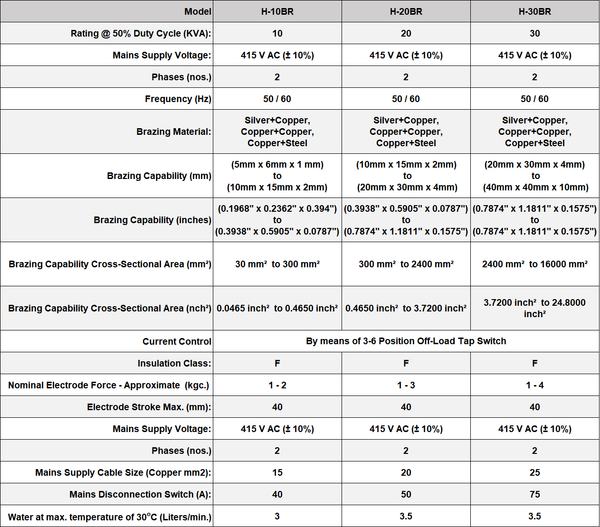

Model Table
